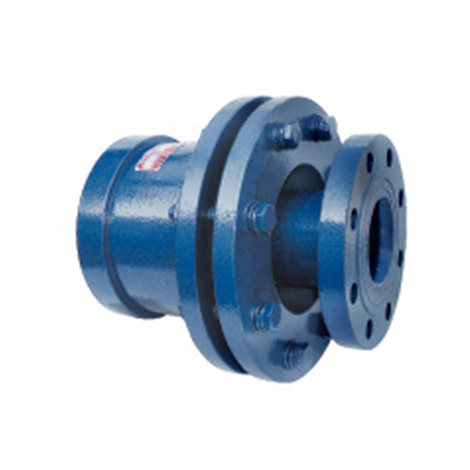

滕州市宏天旋轉接頭廠生產的球體轉動接頭是應用于鋼鐵廠步進梁式加熱爐化冷卻系統新技術上的關鍵設備，它是將加熱爐上做周期性運動的冷卻構件與固定構件相連接的柔性管接上的主要部件上。在一定壓力溫度和流動介質條件下，實現與加熱爐的活動裝置的同步連續運動。經過多年的運行實踐證明：該產品設計合理，轉動靈活，密封可靠，受到了用戶的高度評價，此項目埴補了國內空白，達到了同類產品的國際水平。The ball rotating joint is the key equipment applied to the new technology of walking beam furnace cooling system in iron and steel works. It is the main part of connecting the cooling component which moves periodically on the furnace with the flexible pipe which connects the fixed component. Under the condition of certain pressure, temperature and flowing medium, it can realize synchronous and continuous movement with the moving device of the heating furnace. After many years of operation practice, it has been proved that the product is reasonable in design, flexible in rotation and reliable in sealing. It has been highly praised by users. This project has filled the domestic blank and reached the international level of similar products.

工作溫度：T≦250℃

Working temperature: t ≤ 250 ℃

工作壓力：P≦1．6MPa；P≦4．0MPa

Working pressure: P ≤ 1.6Mpa; P ≤ 4.0Mpa

法蘭標準：JB／T82．1-94

Flange standard: JB / t82.1-94

轉軸擺動最大角度：30°

Maximum swing angle of shaft: 30 °
